If you are looking to install shiplap on a ceiling, you've come to the right place! I love the way planks on a ceiling looks and this actually wasn't too difficult to complete.

We had a little mishap with the spacing of our light fixtures, so instead of taking the drywall down, moving the light holes and re-drywalling, we decided it was a great time to install shiplap on our ceiling instead! I had Ryan write up a 'how-to' for our shiplap ceiling install. Check it out below!

How to Install Shiplap on a Ceiling

How to Install Shiplap on a Ceiling

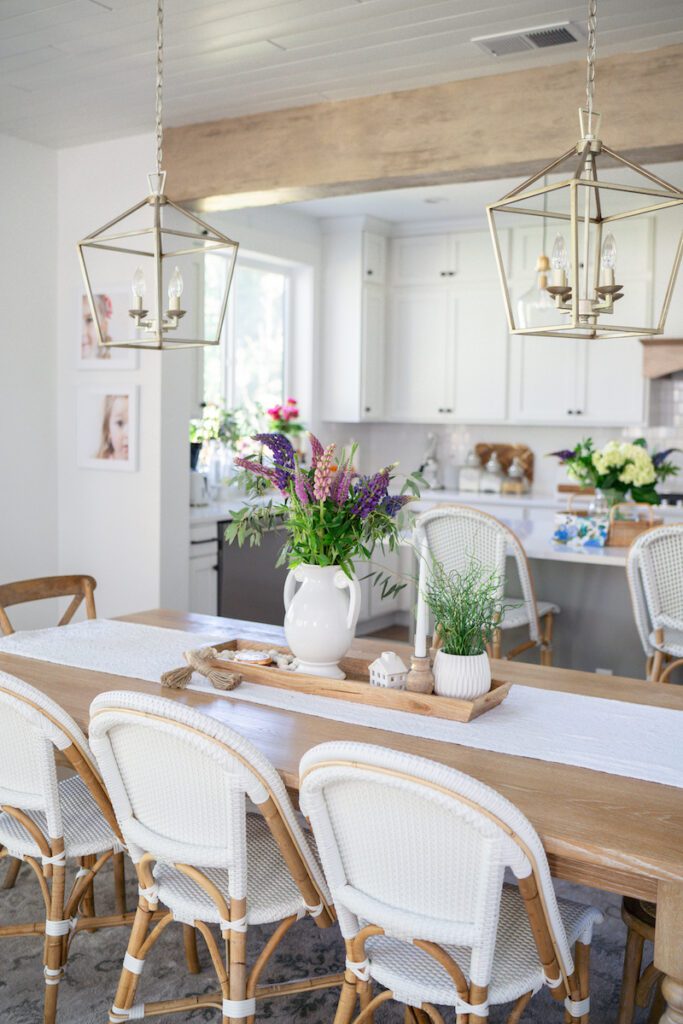

Shortly after we had moved in, we discovered that the fixtures we were going to hang our dining room chandeliers from were too far apart. You would hit your head while getting up at the ends of the table.

How to Install Shiplap on a Ceiling

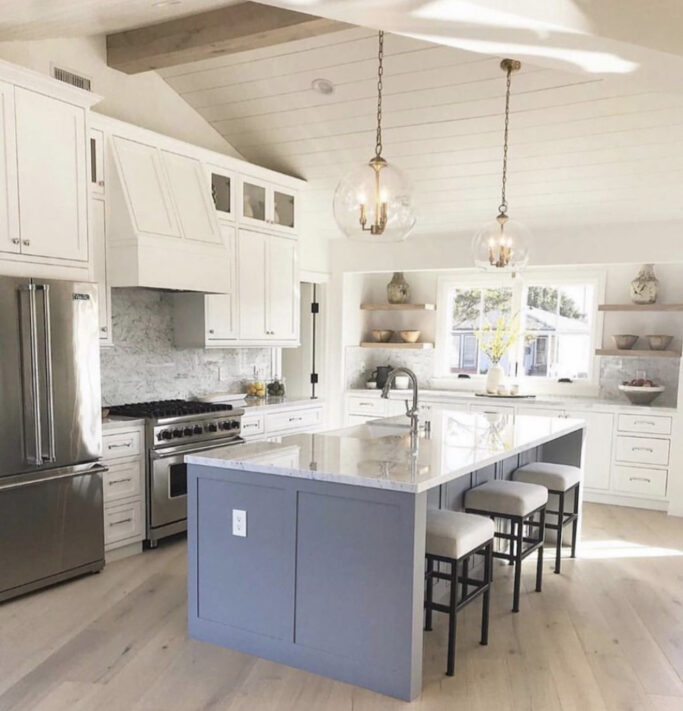

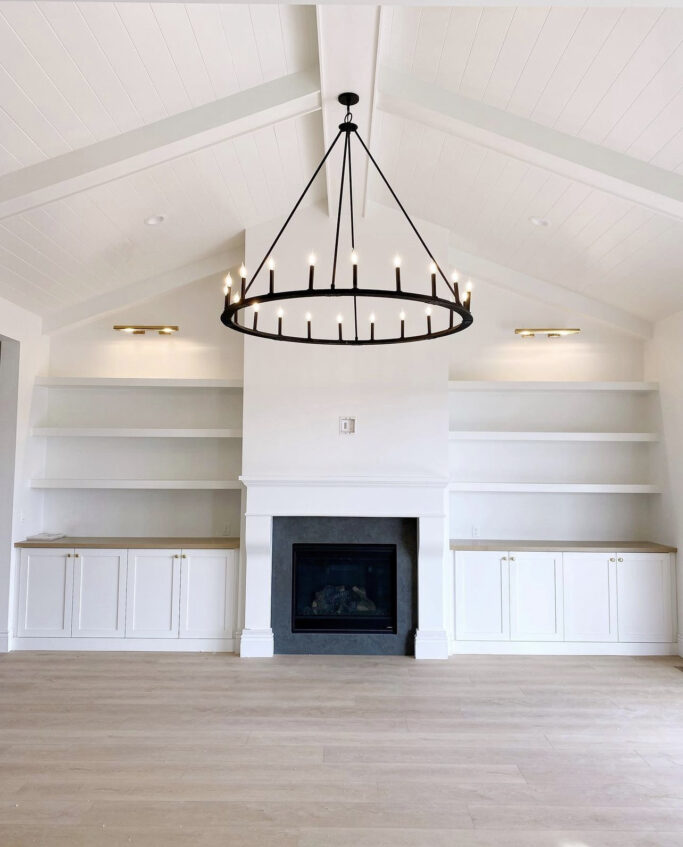

image via Corie Rae Designs

To fix this problem some new holes had to be made in the drywall on the ceiling. One evening Chelsee asked about shiplap on the ceiling. The next morning I was off to buy the material.

Shiplap Vertical or Horizontal?

Normally for shiplap on a ceiling you would want to use a tongue and groove type board. But on such notice, standard shiplap was going to have to do. When doing any project, planning is an important step. Our dining room is longer than it is wide.

How to Install Shiplap on a Ceiling

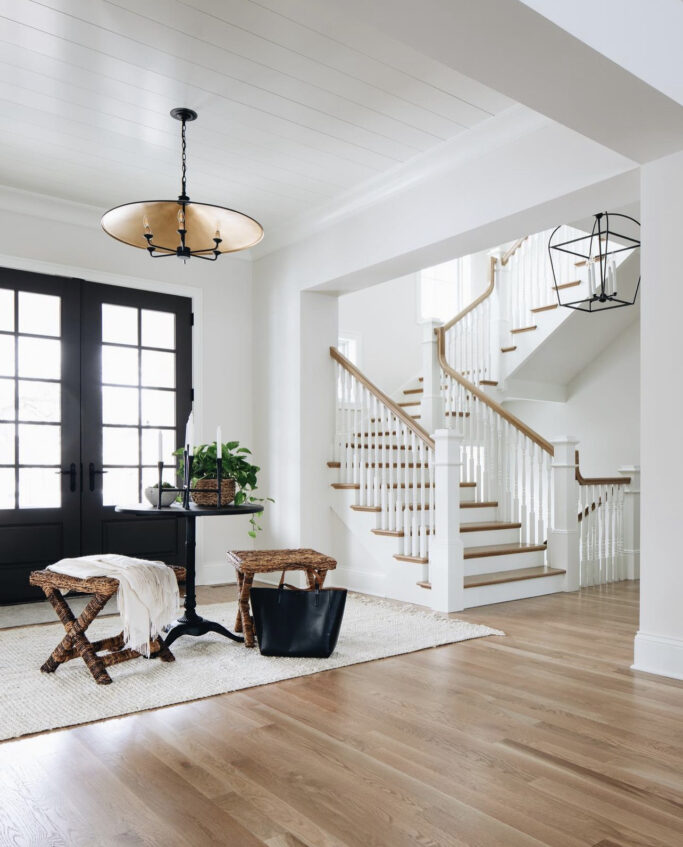

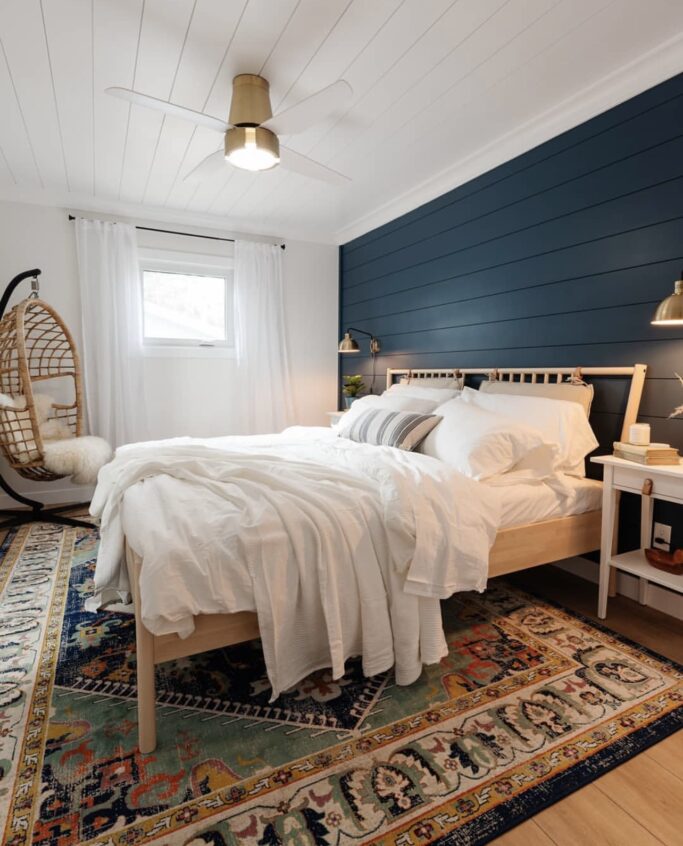

image via Horn Creek Home

We wanted our ceiling shiplap to run the length of our dining room. Sadly, this introduced two problems. The first is the studs run length wise. The second is the ceiling is too long for a single board.

How to Install Shiplap on a Ceiling

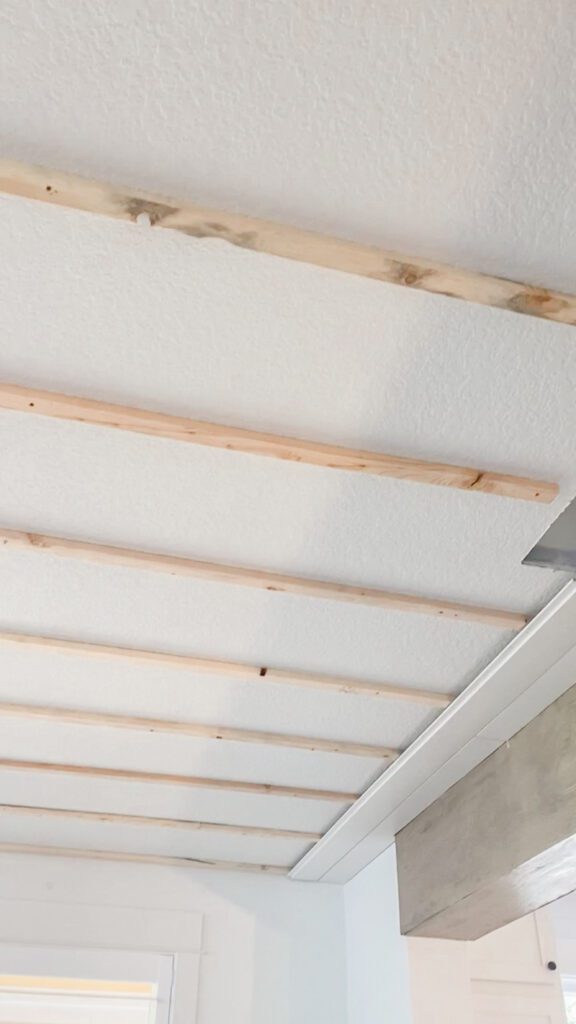

furring strips screwed into studs for shiplap to attach to

What Makes Installing Shiplap on a Ceiling Difficult?

Gravity! When doing shiplap on the walls I aim for studs, but if I miss a few I don't worry. Gravity generally helps hold the boards in place. But on the ceiling I was very concerned with making sure each and every board was secure.

How to Install Shiplap on a Ceiling

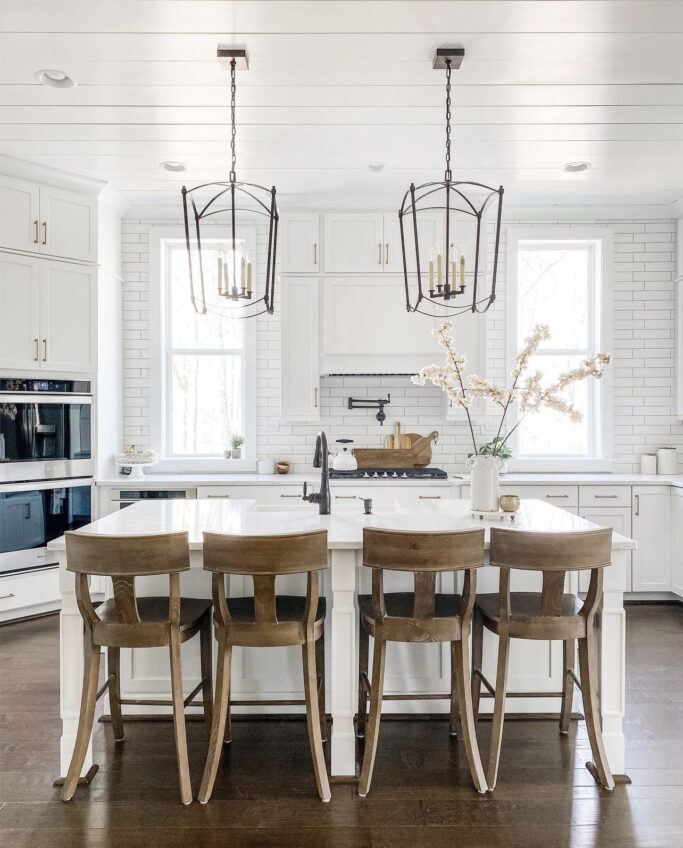

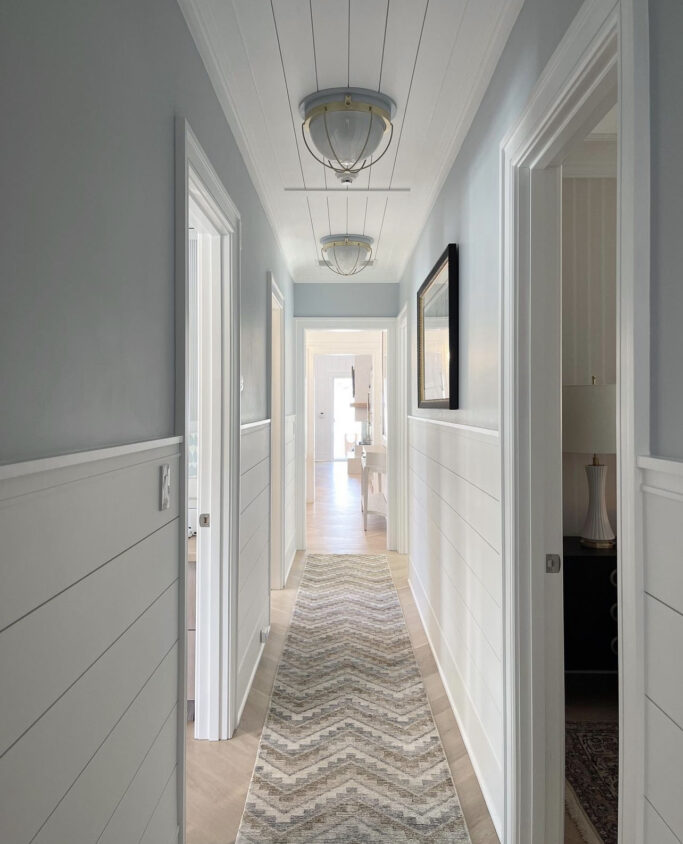

image via Bria Hammel

With my shiplap and the studs both running lengthwise, I would have several pieces of shiplap between studs. To solve this problem I added some furring strips width wise, attaching these securely to the studs. Now I would have a good solid base to attach my ceiling shiplap to.

How to Install Shiplap on a Ceiling

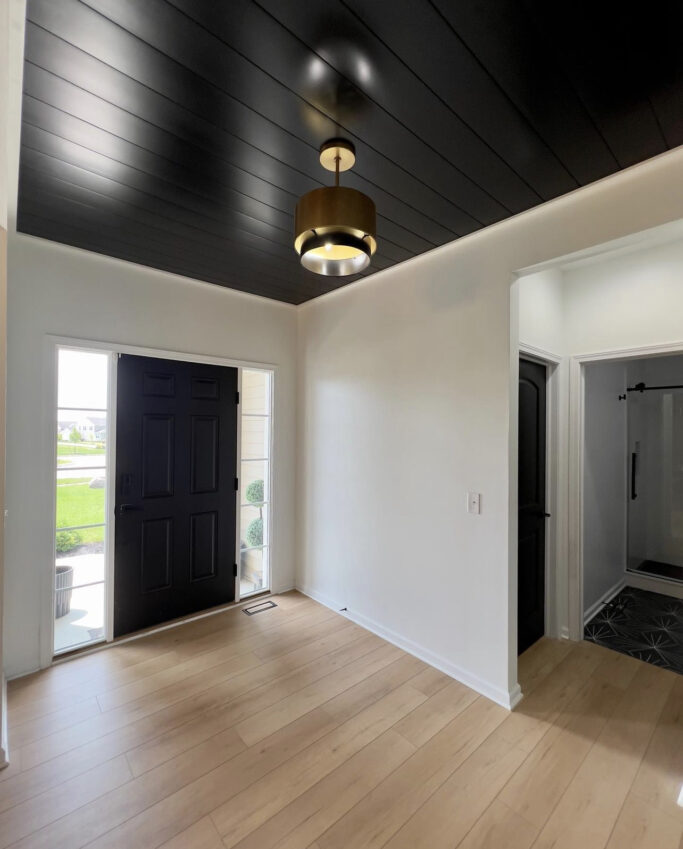

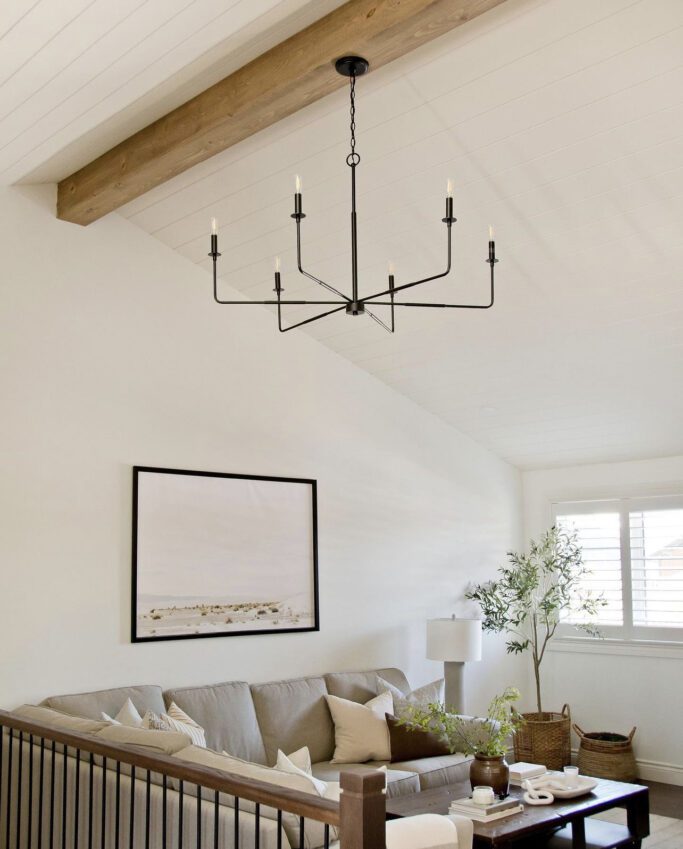

photo via Allison Elebash

Ceiling Shiplap Placement

Having to use two boards to cover the length was going to leave joints in boards. I didn't want all the joints to be in the same spot, but I also didn't want it to look like a brick wall. So I decided to aim for random joints.

How to Install Shiplap on a Ceiling

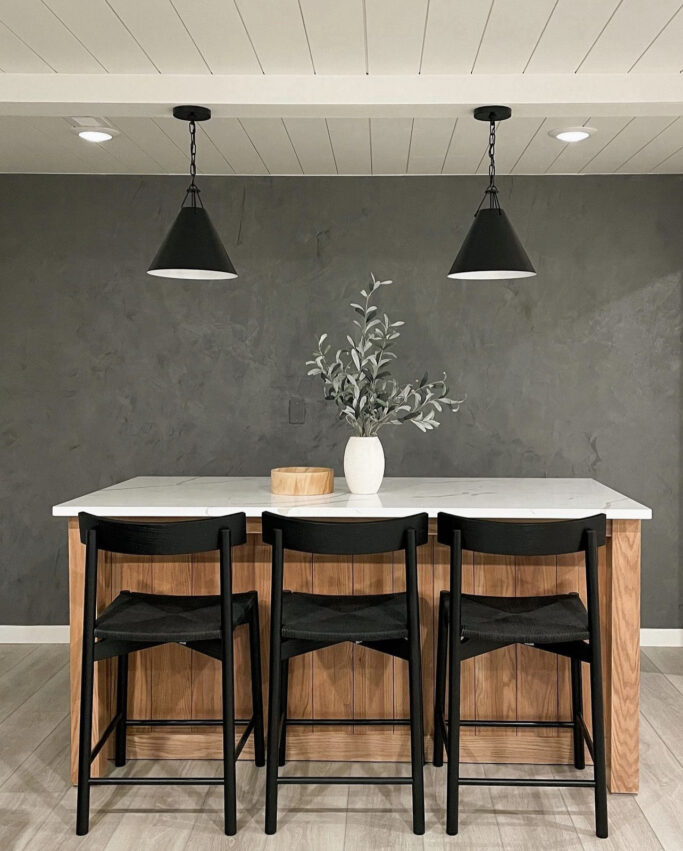

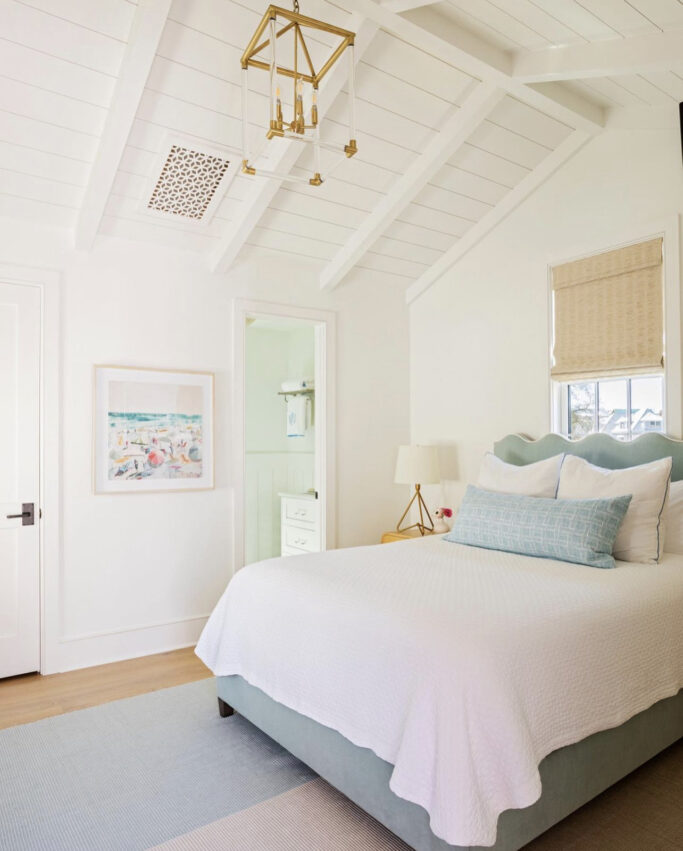

image via Lighting Design Company

To get random joints you need to be very intentional. I also wasn't sure how well I could hide the joints. So I went the other way and made my joints very visible. I like the finished look, but wish I had planned my joint locations just a bit better at times.

DIY Tutorial

Here is our step by step tutorial on how we installed our shiplap on a ceiling.

Step 1 - Plan

Every project needs to be well planned. In this case, measure the ceiling first. Then decide which way the boards will run and what has to be cutout for. Build your material list and go shopping. As mentioned above, I needed shiplap and furring strips. I also needed nails.

How to Install Shiplap on a Ceiling

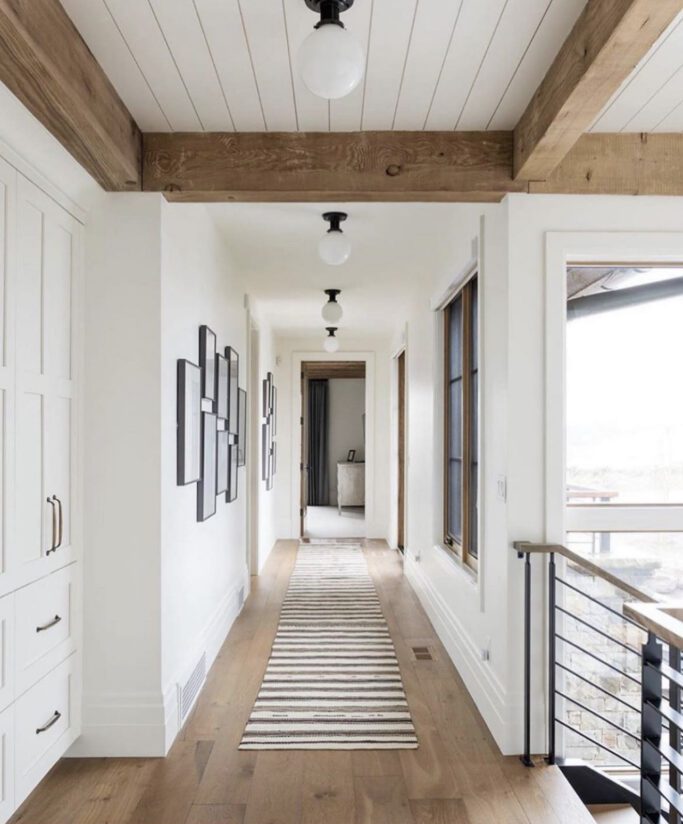

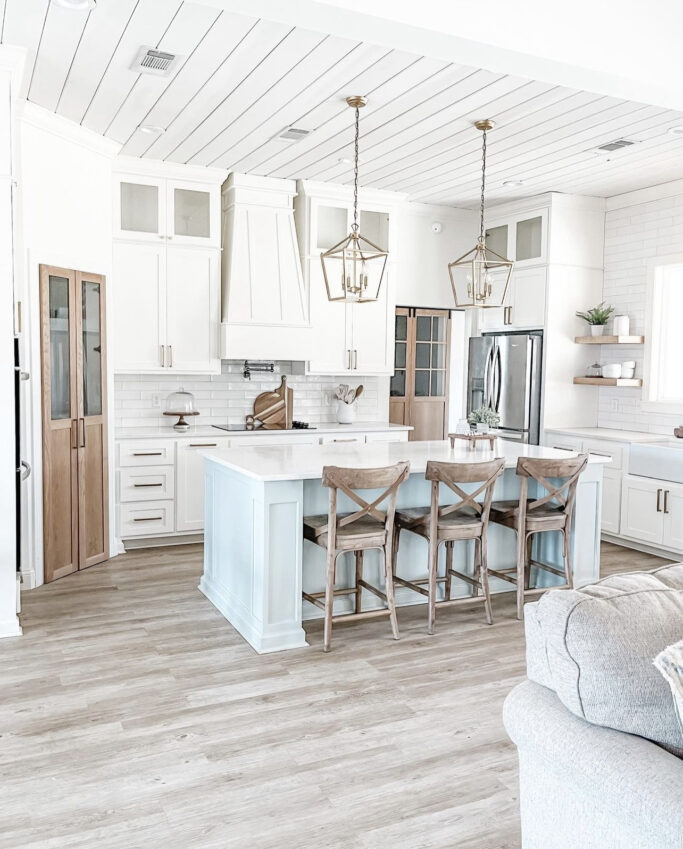

image via Timber Trails Homes

This was a good project to use the 16ga finish nailer on. And better yet, I didn't have a 16ga nailer so... NEW TOOL This gives just a bit more holding power than my normal 18ga brad nails I use on wall shiplap.

How to Install Shiplap on a Ceiling

shop this nail gun here!

Step 2 - Prep

Remove any obstacles, such as lights and light fixtures that will be in the way. Make sure you have space to work and you have the tools that will be needed. As always, know how to use your tools safety.

How to Install Shiplap on a Ceiling

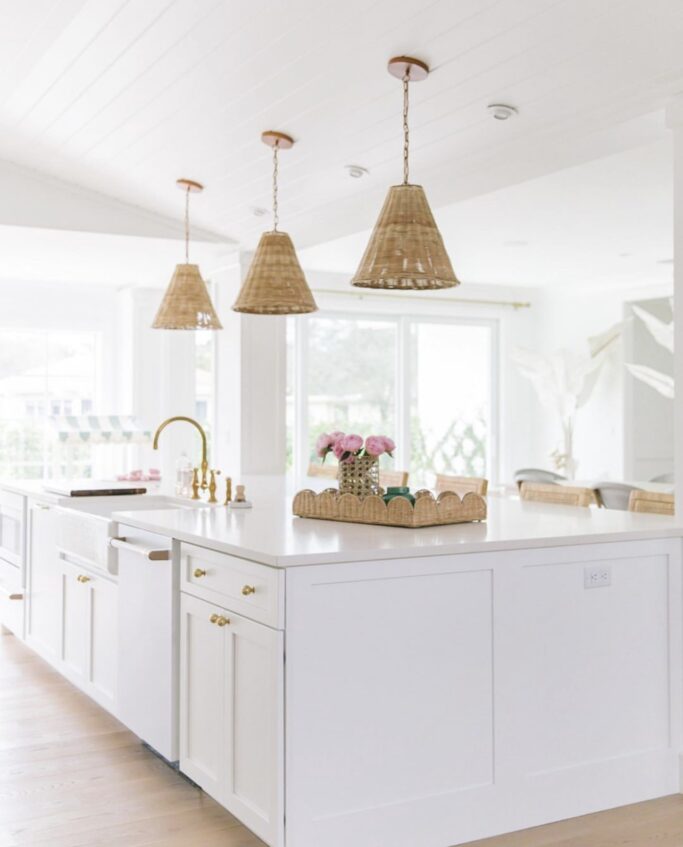

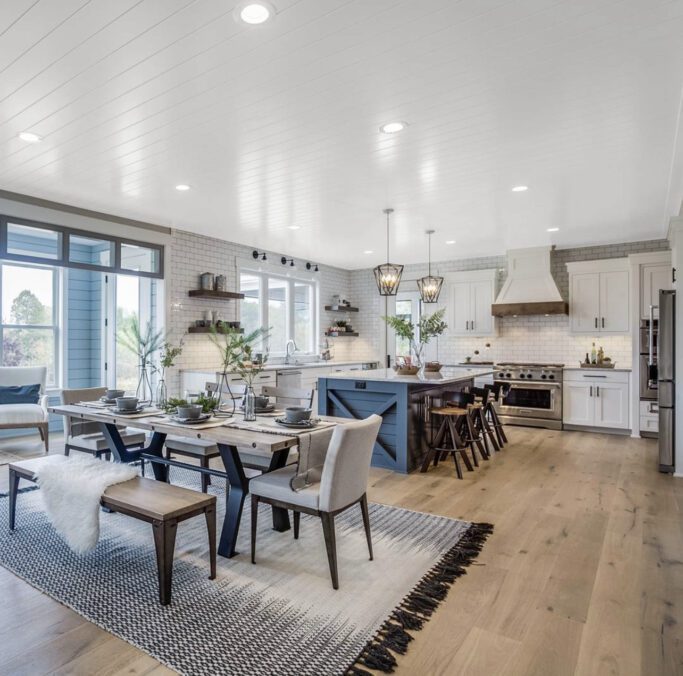

image via The DIY Mommy

I was going to be cutting and painting in the garage and then nailing things in the dining room. So I made sure I had space in both rooms.

Step 3 - Foundation

Since I needed to have a good base to nail my shiplap to, that's where I started. The furring strips were cut to length and nailed them to the studs. They were spaced roughly every 16 inches.

How to Install Shiplap on a Ceiling

image via Provincial Farm Touch

I figured if it's good enough for studs it should work for this. A good hold for the furring strips is important. Screw these to the studs.

How to Install Shiplap on a Ceiling

Step 4 - Measure

You know what they say, measure twice and cut once. Measure how long each board needs to be. If a board will have any obstacles, such as beams or light fixtures, determine where they will be on your board. Transfer all your measurements to the board.

How to Install Shiplap on a Ceiling

Step 5 - Cuts

With all of the measurements known, it was time to cut. I cut each board to length using a miter saw. Any obstacle notches I used a jig saw. These cuts are the ones to pay close attention to. I planned on making a few bad cuts and had a few extra boards.

How to Install Shiplap on a Ceiling

image via Demi Halloran

But the more you plan and the more careful you are, the less you will waste. Lastly, for my joints I routered the end of the boards with a 45 degree bit. It makes the end of each board look intentional.

How to Install Shiplap on a Ceiling

Step 6 - Paint

No one likes painting over their heads. I recommend adding a coat or two of paint to the boards before hanging them. Then you'll just need some finish work at the end. You may want to do this before you cut since painting is a time consuming process.

How to Install Shiplap on a Ceiling

photo via Lovejoy Construction

For trim work, I recommend using an enamel paint with a satin finish. We used Sherwin Williams Pure White which you can read more about here.

Step 7 - Attach Your Boards

As mentioned above, each board is attached to the furring strips with 16 gauge finish nails. Each board is nailed at both ends. I needed help holding the longer boards in place.

How to Install Shiplap on a Ceiling

photo via Geralyn Brennan

Make sure each board is where you want it before nailing. This part is a two person job, so you'll want to make sure to have help.

Step 8 - Finish

With all the shiplap in place, fill in the nail holes with some wood filler. Use caulk around the edges. Then add a final coat of paint.

With the ceiling finished it was time to hang the light fixtures. I'm happy with the finished product. There are a few joints near the beginning that all fell pretty close to each other. If I were doing this again, I would have avoided this.

How to Install Shiplap on a Ceiling

photo via Swanky By Design

Overall we are really happy with how this came together. I like the look of the exposed joints because it gives our home a little more of a 'rustic' look.

Other Shiplap Ceilings You Will Love!

Since installing our ceiling shiplap, I've noticed so many other home with shiplap on their ceiling! I had to share some favorites below.

image via Palm Beach Lately

image via Serana & Lily

image via Keri Kuzma Interiors

image via Home Bunch

image via ninth and vine

Other Posts You Might Love

Bathroom Shiplap // Built In Desk Design // DIY Privacy Fence

Pin This For Later

Hopefully this post was helpful as you start to plan your shiplap on your ceiling! Please let me know if you have any questions by leaving a comment below or feel free to DM me on Instagram!
